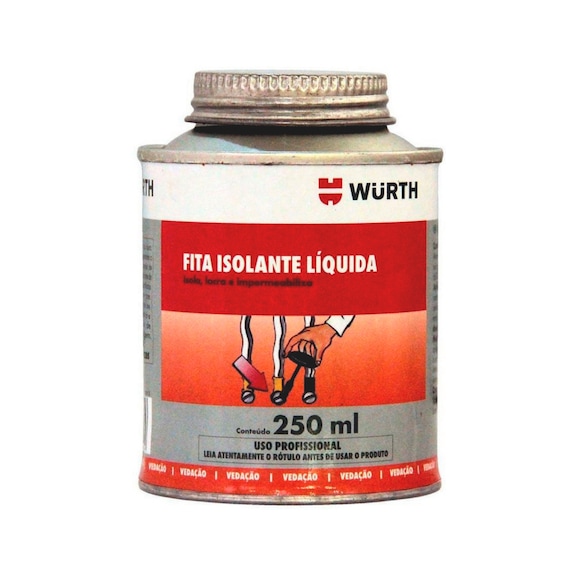

LIQUID INSULATING TAPE

Name: LIQUID INSULATING TAPE
Brand: Würth
SKU: 0893198123

Liquid insulating tape
LIQU-INSUTPE-BLACK-250ML

Art.-no. 0893198123

EAN 4068362212765

All versions

Individual price display after login

LIQUID INSULATING TAPE

Art.-no. 0893198123

Individual price display after login

Quantity

x 9 pcs

Exclusively for trade customers

Login/Register
Call customer service: +598 2288 0000

Liquid insulating tape acts as electrical insulation and a safety seal. Excellent insulation of cables and electrical terminals. 1 mm thick, insulates up to 6,800 V in dry state. Acts as a safety seal on bolts, ensuring tamperproofing of components that require a guarantee as well as protecting against corrosion while maintaining electrical conductivity. Does not spread flames in solid state, i.e. the fire will extinguish in the event of a short circuit. Maintains excellent flexibility and mechanical strength once dried.

Insulates up to 6,800 V.

Fast and clean work.

Easy application in hard-to-reach areas.

Tamperproofing of components.

Maintains electrical conductivity.

Prevents rust formation.

Electrical insulation.

Acts as a safety seal.

Protects against corrosion.

Does not spread flames in solid state.

Seals against humidity.

Maintains excellent flexibility and mechanical strength.

Product information

Würth Catalogue

Datasheets(X)

Certificates/ Documents

Application area

Wires, terminals, tools, electrical cables in general, metals, rubbers, plastics and glass;

Applied to threaded connectors to prevent them from becoming loose.

Instructions

Disconnect the mains;

Clean the surface thoroughly using Würth dielectric degreaser before applying the product;

Stir the product using the brush integrated in the lid;

Apply using the brush or by submerging the part;

If necessary, apply a thicker layer (this increases the insulation);

Once the first layer has dried, a second layer can be applied;

Wait for the product to harden completely over a period of four hours before connecting the mains.

Chemical basis	Solvent-containing synthetic natural rubber
Contents	250 ml
Weight of content	250 g
Container	Can
Colour	Black
Drying time	4 h
Dust-drying time	4 s
Min. through drying	40 min
Min. processing temperature	5 °C
Min. temperature resistance	5 °C
Density	0.93 g/cm³
Density conditions	at 20°C
Min./max. coating thickness	1-2 mm
Max. temperature resistance	50 °C
Shelf life from production	24 Month
Conditions to maintain shelf life from production	cool and dry storage area
